Electrocorp I-6500 AH
I-6500 A is one of the best solution for workplace like, large mortuary, large police evidence room, and hospitals etc. Available in 3 convenient models: I-6500A 80 (1 Carbon and 1 HEPA), I-6500A 160 (2 carbon canisters for heavy odor/gases/VOCs), & I6500A with 2 HEPA filters for extra particle filtration.
Electrocorp units have a 3 Year Warranty.
Product Description
I-6500 A is one of the best solution for workplace like, large mortuary, large police evidence room, and hospitals etc. Available in 3 convenient models: I-6500A 80 (1 Carbon and 1 HEPA), I-6500A 160 (2 carbon canisters for heavy odor/gases/VOCs), & I6500A with 2 HEPA filters for extra particle filtration.
These quality air purifiers are also excellent options for Evidence Rooms, Morgues & Funeral Homes, and Hospitals too.
In industrial or commercial settings where biological contaminants, odors and particles are the main concern, the I-6500 has become one of Electrocorp’s most sought-after units.

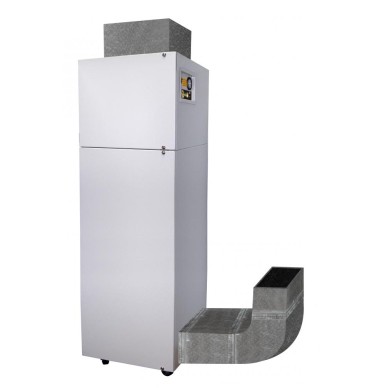

With its sleek, cabinet-style design and small footprint, this powerful air cleaner is as tall as it is effective. The all-metal unit takes in dirty air on the bottom and pushes it through a multi-stage filtration system before it releases the purified air on top, allowing for large-volume airflow and circulation.
The I-6500 series features the most activated carbon for chemical, gas and odor control in its price class and can accommodate 80 pounds or up to 160 pounds of this highly adsorbent filtration media. A wide range of carbon blends helps to mitigate almost any chemical, gas and odor problem.
Cleaner air with Carbon + HEPA filter combination
These versatile air cleaners also remove particles from the ambient air with an ultra-efficient HEPA filter as well as particle-trapping pre-filters, which prolong the life of the other filters. A pressure gauge facilitates the monitoring of the filters and indicates when a change is required. It is possible to add UV light technology to help neutralize any biological contaminants such as mold spores, bacteria and viruses.
The filter compartment of the I-6500 Series is easily accessible through a hinged door that is secured with latches. No tools are required. A second, similar door provides access to the motor compartment. The motor can run on two speeds at 650 CFM (cubic feet per minute) up to 1000 CFM (Free Flowing). We recommend running it at the lowest speed, which is the most effective for activated carbon.
The I-6500 air purifiers function as stand-alone, plug-and-go units that can be moved at will on their wheels, or they can be attached to an existing HVAC system in small to medium-sized buildings. The I-6500 complies with national and international standards and is CSA-certified." -- Compliments of Electrocorp
Specifications
Technical Characteristics of I 6500 AH 120 |
|
Filtration System | Activated carbon filters, 2 x 12" depth, 2X2" pre-filters |
Carbon Weight | 120 lbs. |
Surface Area of Carbon Media | N/A |
HEPA | N/A |
Surface Area of HEPA Media | N/A |
Micro-HEPA | N/A |
CFM |
Free Flowing 750 - 1000 Delivered 300-650 |
Speed | 2-speed |
UV Lamp | Available (except California) |
Available Colors | Sandstone |
Voltage | 115/60Hz only |
Amps (115V/230V) | 5.4 |
Cord Length | 8 feet |
Noise Level | 55-75 dB |
Maneuverability | N/A |
Filter Access | Front with phillips screws |
Motor Details | Motor with a backward curved impeller wheel/motor |
Dimensions | 70" x 24.5" x 21" (H x W x D) |
Shipping Weight | Approx. 365 lbs. |
Operating Weight | 340 lbs. |
Number of Units per Pallet | 1 |
CSA/UL | Certified |
Technical Characteristics of I 6500 AH 80 |
|
Filtration System | Activated carbon filter, 12" depth, medical-grade HEPA, pre-filter |
Carbon Weight | 80 lbs. |
Surface Area of Carbon Media | N/A |
HEPA | Medical-grade, removes 99.97% of all airborne particles 0.3 microns in size |
Surface Area of HEPA Media | 29997.75 sq. in. |
Micro-HEPA | N/A |
CFM |
750 - 1000 Free flowing Est Max 650 CFM Delivered |
Speed | 2-speed |
UV Lamp | Available (except California) |
Available Colors | Sandstone |
Voltage | 115/60Hz only |
Amps (115V/230V) | 5.4 |
Cord Length | 8 feet |
Noise Level | 55-75 dB |
Maneuverability | N/A |
Filter Access | Front with phillips screws |
Motor Details | Motor with a backward curved impeller wheel/motor |
Dimensions | 70" x 24.5" x 21" (H x W x D) |
Shipping Weight | Approx. 325 lbs. |
Operating Weight | 300 lbs. |
Number of Units per Pallet | 1 |
CSA/UL | Certified |
Recommended for
- Hospitals, Clinics, Healthcare Establishments
The unit can be equipped with a 12” gel-sealed medical-grade HEPA and it is ideal for sterile environments - Laboratories
One of our best units when biological contaminants are the main concern - Law Enforcement
To protect materials and officers in evidence and property rooms and the different departments - Offices
Blends in perfectly with its cabinet-style design and keeps the air clean - Hospitality
Air purifiers for Hotels, Motels, Restaurants, Bars, Casinos - Marijuana Dispensaries
- Museums
- Schools and Universities
- Facility Management
- Chemical Processing Plants
- Libraries and Archives
- Odor Control
- Printing and Graphics
- Environmental Consulting
- Waste Water treatment
- Funeral Homes and Embalming
- Dental labs
- Pulp and Paper Mills
Comparative-Chart
Model Name: | I-6500 AH 80 | I-6500 AH 120 |
Product Image: | ||
Filtration System: | Activated carbon filter, 12" depth, medical-grade HEPA, pre-filter | Activated carbon filters, 2 x 12" depth, 2X2" pre-filters |
Carbon Weight: | 80 lbs. | 120 lbs. |
Surface Area of Carbon Mdia: | N/A | N/A |
HEPA: | Medical-grade, removes 99.97% of all airborne particles 0.3 microns in size | N/A |
Surface Area of HEPA Media: | 29997.75 sq. in. | N/A |
Micro-HEPA: | N/A | N/A |
CFM: |
750 - 1000 Free Flowing Est Max 750 CFM Delivered |
750 - 1000 Free Flowing Est Max 750 CFM Delivered |
Speed: | 2-speed | 2-speed |
UV Lamp: | Available | Available |
Available Colors: | Sandstone | Sandstone |
Voltage: | 115/60Hz only | 115/60Hz only |
Amps: | 5.4 | 5.4 |
Cord Length: | 8 feet | 8 feet |
Decibel Level: | 55-75 dB | 55-75 dB |
Maneuverability: | N/A | N/A |
Filter Access: | Front with phillips screws | Front with phillips screws |
Motor Details: | Motor with a backward curved impeller wheel/motor | Motor with a backward curved impeller wheel/motor |
Dimensions: | 70" x 24.5" x 21" (H x W x D) | 70" x 24.5" x 21" (H x W x D) |
Shipping Weight: | Approx. 365 lbs. | Approx. 325 lbs. |
Operating Weight: | 340 lbs. | 300 lbs. |
Number of Units per Pallet: | 1 | 1 |
CSA/UL: | Certified | Certified |
