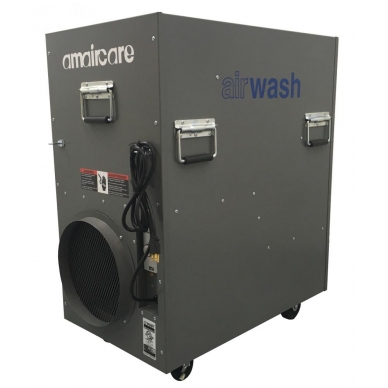

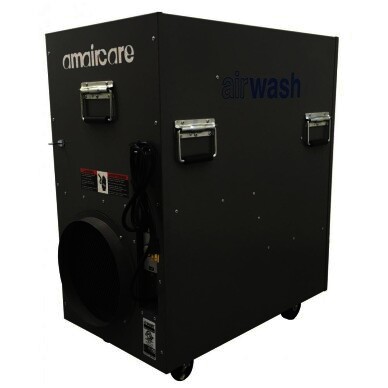

Amaircare Airwash MultiPro BOSS Heavy Duty Portable Air Scrubber Focus Strong Particulates and Moderate VOCs

TECHNICAL SPECIFICATIONS For BOSS with HEPA and Carbon Configuration

ITEM:  AH2000 Portable Filtration System (AKA THE BOSS)

Configured with HEPA and Carbon Canisters

Airflow: 1800 cfm (3000 cu. m. / hr.) nominal on high speed

dBA Rating @ 6’: Estimated at Low speed - 66 db, High speed - 86 db

HEPA Filter: 2 - HEPA Cartridges per unit.  Each rated at Efficiency: 99.97% minimum at 0.3 micron particle and above

Carbon Filter: 2 – 7lb activated carbon canisters that are inserted inside of the HEPA.  These will ship separately to avoid damage and will need installed upon arrival.

Control:  Variable Speed Switch

RPM max: 3050 RPM

Weight: 70 lbs (32 kg) with HEPA Only configuration

            This configuration is approximately 84 lbs with HEPA/Carbon configuration

Dimensions: 19” W x 34.1” H x 31.1” L  (483 mm. w x 866mm. h x 790 mm. lg)

Intake: 12 “diameter collar

Outflow: 12 “diameter collar

Voltage: 120 vac/1 ph. /60 Hz.

Operating Current: 5.2 amps

Casters: Yes

Manufacturer: Amaircare

Country of Origin: Canada



Please keep in mind this configuration uses 2 different prefilters plus 2 sets of  HEPAs and 2 sets of Carbon Canister.

 Note: There are 3 common configurations for the Amaircare AirWash MultiPro BOSS Air Scrubber.

This quote is for HEPA/Carbon configuration for heavy particulates and moderate VOCs, gases, and odors.  (Highlighted below)



• Heavy VOCs, gases, & Odors - This unit is frequently referred to as Amaircare AirWash MultiPro Air Scrubber with 60 lb carbon canister.  This unit uses 2 different kinds of prefilters and 2 - 30 lbs carbon canister called 16" Ultra VOC filter and does not use a HEPA.
• Particulate Focus & Moderate VOCs, gases & odors (Shown) - This unit is referred to as Amaircare AirWash MultiPro BOSS Air Scrubber with HEPA & Carbon.  This unit uses 2 different kinds of prefilters, 2 - 16in HEPA filters, and 2 - 7 lb carbon canisters.
• Particulate Focus - This unit is referred to as Amaircare AirWash MultiPro BOSS Air Scrubber with HEPA & Optional Carbon Blanket.  This unit uses 2 different kinds of prefilters, 2 - 16in HEPA filters, and 2 - optional carbon blankets for light VOCs, gases, & odors.



**Something to keep in mind is that the machines are identical, the filters vary based on filtration needed.  With this in mind, if the usage changes with time, you can simply change your filter configuration to match your filtration needs.

Note:  CFM (Cubic Feet per a Minute), ACH (Air Changes an Hour), Coverage are estimates and are based on factory and/or independent testing typically tested with the purifier on high in an open setting similar to a lab. Actual results may vary for a wide realm of reasons, including but not limited to the motor and the filters.   Factors such as filter loading, reduced voltage to the motor, and inlet and outlet ducting may affect airflow. Use these ratings as a general guideline only.

• Free Shipping Amaircare MultiPro Media Pad PreFilter, 24x91-A-D0919-NA, Pack of 24
  $258.00
  • Amaircare MultiPro PreFilter
  • Formerly AFC1000726
  • Media Pad Pre filter (Pack of 24)
  • 13” x 13” x 2”
• Free Shipping Amaircare MultiPro Media Pad PreFilter, 48x91-A-D0919-NA, Pack of 48
  $500.00
  • Amaircare MultiPro PreFilter
  • Formerly AFC1000726
  • Extra Savings - Qty 48
  • 13” x 13” x 2”
• Free Shipping Amaircare MultiPro PreFilter, 8x91-A-D020-NA, Pleated Pre filter, Pack of 8
  $138.00
  • Fits Amaircare MultiPro
  • Formerly AFC1057554
  • Pleated Pre filter (Pack of 8)
  • 13” x 13” x 2”, MERV 8
• Free Shipping Amaircare 16 ET HEPA Filter for Larger Purifiers and Air Scrubbers
  $239.00
  • Fits Most Larger Purifiers & Scrubbers
  • Check every 2 years
  • Stage 2 of Filtration
  • Easy Twist HEPA
• Free Shipping Amaircare 16 in ET Plus Annual VOC Filter Kit for Larger Purifiers and Air Scrubbers
  Starting at $179.00
  • Fits Most Larger Purifiers & Scrubbers
  • 1 Foam & 1 Pleated Carbon
  • Stage 1 and Stage 3 of Filtration
  • Moderate VOC Focus
• Free Shipping Amaircare 3000 Annual VOC Filter Kit - 16 in
  Starting at $179.00
  • 3 carbon pre-filters & 1 VOC canister
  • Customized Carbon
  • Disposable PreFilters
  • Annual Kit
• Free Shipping Amaircare 7 lb Carbon Canister Without Prefilters
  Starting at $210.00
  • 1 - 7 lb Carbon Canister
  • Customized Carbon
  • 16 in Easy Twist
  • No Prefilter

Barb Lulay demonstrates the Easy Twist Filters and installing a VOC canister into a HEPA unit using an Amaircare 3000 unit.

• Free Shipping Amaircare 7500 Chem Bio AirWash Air Scrubber Optional VOC Inner Canisters
  Starting at $3,469.00
  • Covers 60,000 ft3 (provides 1 ACH)
  • 1000 CFM
  • 2 Sets of 16" Filters
  • Comes without a cart
• Free Shipping Amaircare Airwash HEPA MultiPro Air Scrubber Moderate VOC Focus - Hepa & 5 lbs Carbon
  $1,249.00 $1,145.10
  • Covers 41,400 ft3 (provides 1 ACH)
  • HEPA & 5 lb Carbon Canister
  • Est CFM 700-800
  • Focus is Particulate with Moderate VOCs, Gases, Odors
• Free Shipping Amaircare Airwash MultiPro BOSS Heavy Duty HEPA Portable Air Scrubber for Strong Particulates and Optional Light VOC Protection
  Starting at $2,435.00
  • Powerful HEPA Filtration
  • Easy to Maintenance
  • Affordable & Versatile
  • 1800 CFM
• Free Shipping Amaircare Airwash MultiPro BOSS Heavy Duty Portable Air Scrubber Focus Heavy VOCs
  Starting at $3,045.00
  • Powerful 1800 CFM
  • 60 lbs Carbon
  • Easy to Maintenance
  • Affordable

The Boss has a wide range of uses.  If you are looking for versatility, power, and affordability, this is the unit for you.



Some common uses are as follows:

• Positive Pressure Clean Room
• Negative Pressure Clean Room
• Evidence Rooms
• Marijuana Dispensaries
• Mold
• Restoration
• Morgues & Funeral Homes
• Negative or Positive Pressure
• Fume Extractor
• Source Extractor
• Temp Clean Rooms
• Forest Fires
• Odor Control

Amaircare Airwash HEPA MultiPro BOSS Air Scrubber is a top quality, heavy duty portable air purifier for a wide variety of industrial applications.

Comes with a 5 YEAR Limited Warranty.

The BOSS can accommodate virtually an industries needs simply changing the filter configurations.  High power, Versatile, and Affordable.  Truly the trifecta of air scrubbers.

The filters can be configured to best suit your needs:



STAGE 1 of Filtration: Metal Mesh Prefilter or Media Pad Prefilter

• Remove the Prefilter Holder from the Inlet by pulling the handle upwards.	• Dispose and replace the Media Pad Prefilter when it is covered in particulate.
• The Metal Mesh Prefilter can be cleaned by gently blowing out with compressed air.	• Remove the Prefilter Holder from the Inlet by pulling the handle upwards.
• Return the Prefilter Holder with the Metal Mesh Prefilter to the frame on the Inlet .	• Pull the used Prefilter from the Holder and dispose appropriately.
• It is recommended that the Metal Mesh Prefilter be replaced regularly.	• Fit the new Media Pad Prefilter into the holder.
	• Return the Prefilter Holder with the Media Pad Prefilter to the frame on the Inlet .



STAGE 2 of Filtration: Foam Filter

• Follow directions for removing HEPA Cartridge from the unit.

• Slowly pull the foam filter up and off the HEPA Cartridge to avoid releasing particles back into the air.

• Dispose appropriately.

• Pull the new Foam Filter over the HEPA Cartridge (like a sock) and into place.





STAGE 3 of Filtration: HEPA Cartridge or VOC Ultra Canister

• Inspect the HEPA Cartridge with the lid removed.

• Unfasten the restraining strap(s) holding the filter(s) in place.

• Place hands flat against the end cap of the HEPA Cartridge to grip and rotate the cartridge counter clockwise to release it from the bulkhead.

• The loaded HEPA Cartridge and O-ring should be bagged and disposed with suitable procedures.

• Clean the empty housing before fitting the replacement O-ring and HEPA Cartridge.

• Press down firmly to compress the O-ring as the HEPA Cartridge is rotated clockwise to lock it on the bulkhead.

STAGE 4 of Filtration: VOC Blanket or VOC Canister

• With the HEPA Cylinder removed from the bulkhead, look inside the HEPA Cylinder to locate the two ends of the VOC blanket.	• Remove old carbon canister (if installed) by pulling it out from the inside of the HEPA filter or housing.
• Pull one end of the old inner carbon filter in and bend it into a loose roll so it can be removed.	• If replacing an inner carbon blanket with the carbon canister, remove inner carbon filter by following the steps for removing the VOC Blanket .
• Remove the inner carbon filter from the HEPA Cylinder and dispose.	• Remove the plastic shrink wrap from the new carbon canister.
• Remove plastic shrink wrap from the new inner carbon filter.	• Slide the carbon canister into the HEPA Cylinder, smaller end first. The carbon canister should slide all the way in until the metal edges at the base meet the HEPA filter.
• Unroll the inner carbon filter and roll it up in the opposite direction (this makes the filter follow a more contoured profile against the inner HEPA filter surfaces and helps keep it in place), place the rolled inner carbon filter inside the HEPA Cylinder and gently unroll it until the ends ‘butt’ together and the filter is snug against the HEPA filter.	• Support the carbon canister with your fingers so it does not slide out when replacing the HEPA Cylinder assembly into the unit.Canister (Option):





View the Amaircare Air Scrubber Product Catalog by Visiting Amaircare Air Scrubber Industrial Product Catalog.

Download Amaircare Airwash MultiPro BOSS Heavy Duty Portable Air Scrubber Manual

Download Amaircare BOSS Certification

View the Amaircare Product Catalog by Visiting Amaircare Product Catalog.

*Download Activated Carbon Adsorbency Ratings for Amaircare VOC Air Purifiers by clicking here.

*Note: Straight activated charcoal does not have much capacity for some reactive gases, such as ammonia, formaldehyde, etc. In some cases where the gas is chemically reactive, appropriate impregnated activated charcoal can be recommended.  There may be an extra charge for this.  Please contact us, if you are in need of filtration of a specific chemical(s) and would like more details.
