US Air Purifiers

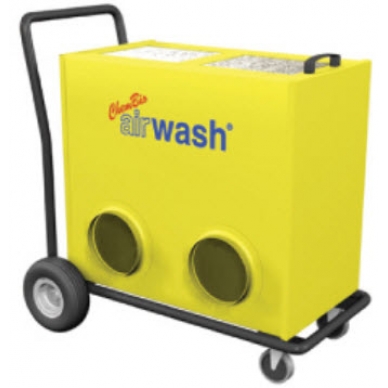

Amaircare 7500 Cart Vocarb Chem Bio AirWash Air Scrubber

Model: 17-A-1KYE-00-voc

SKU: amr-ap-us1238

Zoom In

Free Shipping

This item has been discontinued. The BOSS makes an excellent replacement and also offer more power.

Amaircare 7500 Cart Airwash heavy duty portable air purifier features filtration for a wide variety of industrial applications: property rooms & evidence rooms, construction & renovation, fire & mold remediation, marijuana dispensaries, welding and print shops, among many others.

Best used where VOCs are a concern.

Coverage for 60,000 ft³ (provides 1 ACH/hr). The steel tube cart and heavy duty tires allow for easy transportation even in rugged environments. Comes with a 5 YEAR Limited Warranty.

Product Description

Amaircare 7500 Cart Airwash Air Scrubber is a heavy duty portable VOC air purifier featuring filtration for a wide variety of industrial applications: evidence rooms and property rooms, construction & renovation, fire & mold remediation, marijuana dispensaries, welding and print shops, among many others.

CFM- 1000CFM

Best used where VOCs,odor, gas, virus and bacteria area concern over particulate matter. Featuring perfect seal technology.

Coverage for 60,000 ft3 (provides 1 ACH/hr). The steel tube cart and heavy duty tires allow for easy transportation even in rugged environments.

Amaircare air cleaners (airwash, air scrubbers, chem bio airwash) are individually tested to meet HEPA standards and beyond. This means that the complete air cleaner system will remove at least 99.97% of all particles as small as 0.3 microns (1/300th the size of a human hair or 0.000012 of an inch) that enter the air cleaner and are also 99.96% efficient at 0.1 microns. The 7500 is built to provide air filtration for large commercial spaces.

Comes with a 5 YEAR Limited Warranty. Also known as AirWash.

Filter section is easy to access for maintenance. Protective steel mesh safely covers the air outflow.

Removable IEC power cord.

Note: 7500 units requires 2 sets of the annual kits and 2 HEPAs

Also available in 220 and most plug types.

Optional Upgrades:

Third stage VOC canister upgrade available.
Second stage Carbon only canister available for special applications.

All Amaircare® air filtration systems are covered by a limited 5 year warranty.

FEATURES AND BENEFITS

Top Filter Access Panel and Intake with Handle – Panel slides and lifts without difficulty to access filters for maintenance.

Metal Mesh Prefilter on Intake – provides heavy duty large particulate filtering and protects the interior filters, extending ultrafine and VOC filtering performance.

2” Fresh Air Intake Port – allows for new external air to be filtered and introduced to the environment. Can be used to create a positively pressurized “safe-room” environment.

Right Side Directed Outflow – direct and redirect clean air as needed with the versatility of front swivel castors.

Sturdy Steel Tube Cart with Rugged Tires and Castors – navigate uneven terrain to bring clean air anywhere your work requires.

Steel Construction with Baked Thermoset Powder Finish – tough wear and tear resistant housing that doesn’t off-gas chemicals, true to the integrity of providing clean air!

Interior Filters – final 3 stages of filtration is contained and protected within a durable steel cabinet.

Perfect Seal Filter Configuration – Easy-Twist HEPA locks into place to ensure the filter is completely sealed in the unit and no polluted air leaks.

Dual Perfect Seal 3 Stage Filtration – two sets of filters capture large particulate and VOCs with the first stage foam prefilter, harmful and irritating particulate are trapped with the second stage HEPA filter that locks in place and chemical/gas pollution are adsorbed by the third stage carbon VOC filter.

Easy-Twist HEPA Cartridge – Filters are convenient to access and change with just a twist of the main HEPA Cartridge.

Standard Third Stage VOC Canister – 2 x 1550 g of granulated carbon provide vital capture of chemical and gas pollution.

Variable Speed Control – change the system rate of air flow to suit capture needs to the level of contaminants in the environment.

Detachable 12’ IEC Power Cord – conveniently removes for portability and storage.

Two High Efficiency AC Backward Curved Motors – for boosted dual performance air flow at a low running cost, minimal drain on electricity resources with years of continuous performance.

Ultra VOC Filter Upgrade – replaces the HEPA Cartridge with a 9475 g canister of granulated carbon for cases requiring extreme chemical and gas pollution capture. Replace one or two HEPA Cartridges. Customized treated Carbon fills available upon request.

Options:

Collared Intake Panel – allows for rigid or flexible ducting connection to configure targeted source capture of pollutants.

Specifications

TECHNICAL SPECIFICATIONS

ITEM: 17-A-1KYE-00

Maximum Recommended Area Size: 60,000 ft³ (provides 1 ACH/hr)

Filter Life: Prefilter – 12 months

HEPA Filter – 3 to 5 years

Inner Carbon – 6 months

Filter Configuration: Dual Cylindrical Perfect Seal 3-Stage Cartridges (13” Diameter x 16” Height)

Stage One: 1/8” Foam Prefilter x2

Stage Two: 100 sq. ft. Pleated Easy Twist HEPA Cartridge x2

Optional Stage Two Canister: Granulated Carbon pellets incased in steel mesh canister (9475 g = 10,422,500 m² adsorption surface area)

Stage Three: ½” non-woven polyester filter media imbued 200% with Activated Carbon (164 g = 180,400 m² adsorption surface area) x2

Optional Stage Three Canister: Granulated Carbon pellets incased in steel mesh canister (1550 g = 1,705,000 m² adsorption surface area)

Airflow: 1000 CFM

Power Consumption: 320 W

Dimensions: 27”W x 40”L x 38”H

Weight: 118 lbs.

dBA Rating @ 3’: 74 dBA on high

Control: Variable Speed Switch

Construction: 18 gauge steel housing, durable baked thermoset powder finish

Intake: 10” x 12” with metal mesh prefilter x2

Outflow: 8”D Round x2

Fresh Air Intake: 2” Round

Motor: Backward curved impeller

Voltage: 115 volt*

Cord/Plug: 12 foot detachable IEC cord with North American Type K Plug (3 pin grounded)

*available in most commercial voltages with standard plugs.

Filters, Bulbs, Refills

Free Shipping Amaircare 16 ET HEPA Filter for Larger Purifiers and Air Scrubbers
$239.00
- Fits Most Larger Purifiers & Scrubbers
- Check every 2 years
- Stage 2 of Filtration
- Easy Twist HEPA
Free Shipping Amaircare 16 in ET Plus Annual VOC Filter Kit for Larger Purifiers and Air Scrubbers
Starting at $179.00
- Fits Most Larger Purifiers & Scrubbers
- 1 Foam & 1 Pleated Carbon
- Stage 1 and Stage 3 of Filtration
- Moderate VOC Focus
Free Shipping Amaircare 16 in VOC Ultra 30 lbs Filter Kit Larger Air Scrubbers
Starting at $305.00
- Fits Most Larger Purifiers & Scrubbers
- Used in place of HEPA
- Stage 1 and Stage 3 of Filtration
- Ultra VOC Focus - extreme chemical removal

Common Uses

7500 air wash can be custom designed to solve numerous air purification needs and is frequently referred to as an air scrubber, air wash, Chem Bio Airwash, Heavy Duty or Commercial air purifier.

Some common uses are as follows:

Evidence Rooms
Marijuana Dispensaries
Mold
Restoration
Morgues & Funeral Homes
Negative or Positive Pressure
Fume Extractor
Source Extractor
Temp Clean Rooms
Forrest Fires
Odor Control

Comparison

HOW TO SIZE

Air Changes per Hour (ACH)
(How many times can all the air in an area/room(s) be cleaned through the filter each hour?)

	1 ACH	2 ACH	3 ACH	4 ACH	5 ACH	6 ACH
6000V Cart	36 000 ft³	18 000 ft³	12 000 ft³	9 000 ft³	7 200 ft³	6 000 ft³
7500 Cart	60 000 ft³	30 000 ft³	20 000 ft³	15 000 ft³	12 000 ft³	10 000 ft³
IS5000/IS5000 Cart	135 000 ft³	67 500 ft³	45 000 ft³	33 750 ft³	27 000 ft³	22 500 ft³
4000 VOC Chem	18 000 ft³	9 000 ft³	6 000 ft³	4 500 ft³	3 600 ft³	3 000 ft³
Fume Extractor	13 200 ft³	6 600 ft³	4 400 ft³	3 300 ft³	2 640 ft³	2 200 ft³

Based on 8′ ceilings
Generally speaking, the more air changes per hour (ACH) you can provide, the more effective a HEPA filter can be.
1 ACH provides excellent air cleaning results (higher is recommended for people with sensitivities).
Remember: More HEPA is better than less, but some HEPA is better than nothing at all.

More Info

View the Amaircare Air Scrubber Product Catalog by Visiting Amaircare Air Scrubber Industrial Product Catalog.

Download Amaircare 6000V and 7500 Airwash Cart Brochure by clicking here.

View the Amaircare Product Catalog by Visiting Amaircare Product Catalog.

Download Amaircare 6000 and 7500 Safe Room Brochure by clicking here.

Download Amaircare 6000V and 7500 Airwash Uses by clicking here.

Download Amaircare 7500 Maintenance by clicking here.

Download Amaircare 7500 Airwash Spec Sheet by clicking here.

Download Amaircare 7500 Dual Return Setup by clicking here.

*Download Activated Carbon Adsorbency Ratings for Amaircare VOC Air Purifiers by clicking here.

*Note: Straight activated charcoal does not have much capacity for some reactive gases, such as ammonia, formaldehyde, etc. In some cases where the gas is chemically reactive, appropriate impregnated activated charcoal can be recommended. There may be an extra charge for this. Please contact us, if you are in need of filtration of a specific chemical(s) and would like more details.
